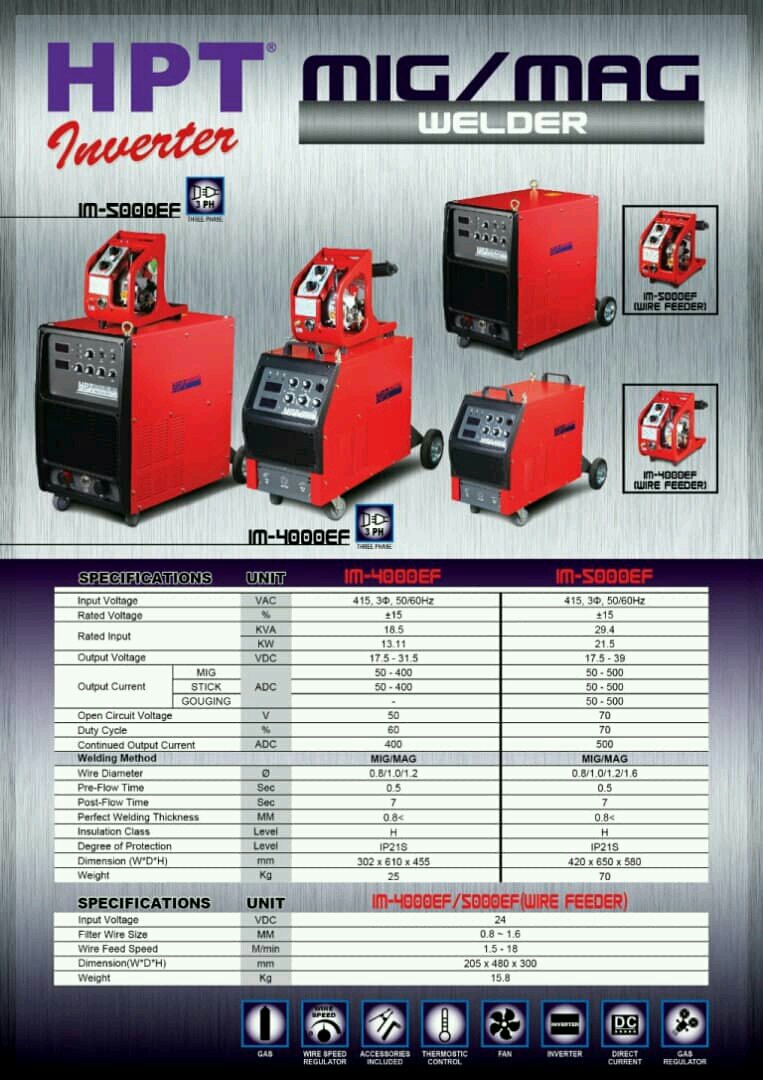

HPT INVERTER MIG WELDING MACHINE IM-4000EF/IM-5000EF
| Description |
MIG / MAG Welding Machine IM-4000EF / IM-5000EF
Features :
| SPECIFICATION | UNIT | IM-4000EF | IM-5000EF | |
| Input voltage | VAC | 415, 3Φ, 50/60Hz | 415, 3Φ, 50/60Hz | |
| Rated voltage | % | ±15 | ±15 | |
| Rated input | KVA | 18.5 | 29.4 | |
| KW | 13.11 | 21.5 | ||
| Output voltage | VDC | 17.5 - 31.5 | 17.5 - 39 | |
| Output current | MIG | 50 - 400 | 50 - 500 | |
| STICK | ADC | 50 - 400 | 50 - 500 | |
| GOUGING | - | 50 -500 | ||
| Open circuit voltage | V | 50 | 70 | |
| Duty cycle | % | 60 | 70 | |
| Continued output current | ADC | 400 | 500 | |
Welding Method - MIG / MAG
| Wire diameter | Φ | 0.8/1.0/1.2 | 0.8/1.0/1.2/1.6 |
| Pre-flow time | SEC | 0.5 | 0.5 |
| Post-flow time | SEC | 7 | 7 |
| Perfect welding thickness | MM | 0.8< | 0.8< |
| Insulation class | LEVEL | H | H |
| Degree of protection | LEVEL | IP21S | IP21S |
| Dimension (W*D*H) | MM | 302x610x455 | 420x650x580 |
| Weight | KG | 25 | 70 |
| SPECIFICATION | UNIT | IM-4000EF / IM-5000EF (WIRE FEEDER) |
| Input voltage | VDC | 24 |
| Filter wire size | MM | 0.8 - 1.6 |
| Wire feed speed | M/min | 1.5 - 18 |
| Dimension (W*D*H) | MM | 205x480x300 |
| Weight | KG | 15.8 |
